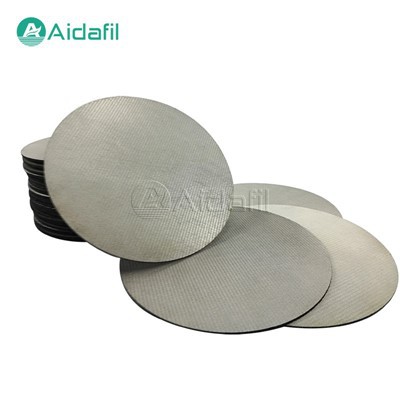

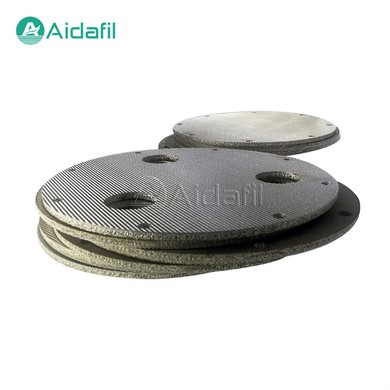

Sintered Porous Metal Filter Disc

Sintered Porous Metal Filter Disc mainly adopts multi-layer sintering network and can be reused and cleaned multiple times. Specifications and sizes can be customized according to customers' requirements.

Features:

1.Backwash and Reusable

2.Uniform pore size distribution

3.Good air permeability

4.High filter efficiency

5.Heat Resistance

6.High corrosion resistance if 316L raw material

Applications:

Filtration and recycling of a variety of catalysts.

Filtration of high temperature off-gas in petrochemical industry.

Filtration of hot off-gas in metallurgical industry.

Retention of particles from off-gas of fluidized beds.

Fine dust and off-gas filtration in coal and nuclear power plants.

Parameters:

• Filter materials: iron, stainless steel, brass, etc.

• Wire diameters: 0.02 mm - 2.03 mm.

• Discs diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).

• Weaving type: plain weave, twill weave, dutch weave, etc.

• Filter shapes: round, ring, square, rectangular, oval, etc.

• Layers: five layers or multiple layers.

• Filtration rate: 0.2 µm - 300 µm.

• Process technique: spot welded, edge covering and sintering.

• Marginal materials: stainless steel, copper, aluminum, rubber, etc.
