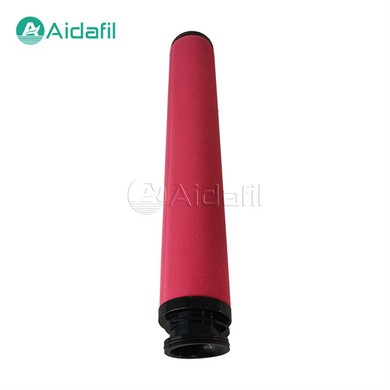

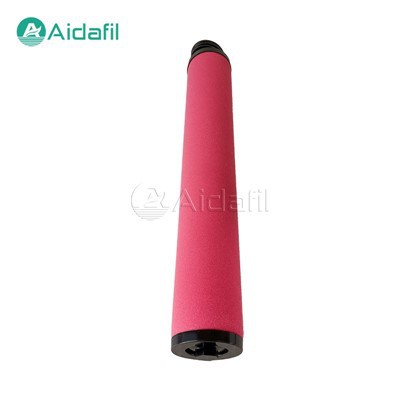

Inline Air Compressor Filter E5-36-II

Inline Air Compressor Filter E5-36-II is an innovative product in the compressed air filtration industry. This state-of-the-art filter element offers excellent filtration properties for compressed air systems. It ensures that compressed air is clean, dry, and oil-free, making it an essential component in different applications, including food and beverage processing, automotive manufacturing, and medical processes.



Inline Air Compressor Filter E5-36-II has a unique design that enables it to remove water droplets, oil mist, and other contaminants from compressed air systems effectively. It has an impressive filtration rating of 0.01-micron making it a reliable and efficient filter.



One of the notable points that we should mention is its high dust-holding capacity. The filter element E5-36-II can hold a considerable amount of dust without compromising its filtration efficiency. Additionally, it has low operating costs since it requires minimal maintenance.



Our customer cooperation case demonstrates the reliability and efficiency of the product E5-36-II.



Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.



Parameter

· Part Number: E5-36-II

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 11

· Filter diameter (mm): 68

· Filter height (mm): 450

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.01ppm w/w



Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy



FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.



Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.



Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.



Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)



Q: May you do OEM Service?

A: Yes.
