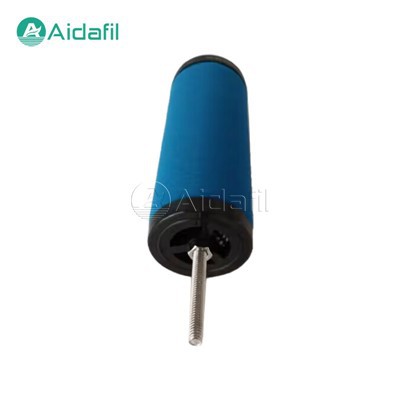

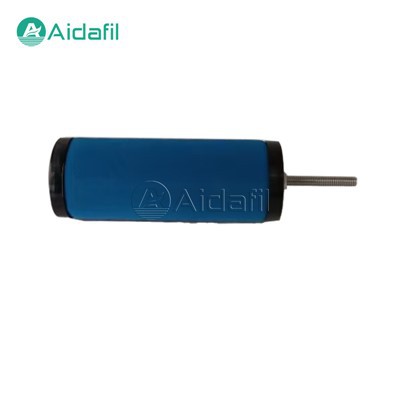

Compressed Air Filter Element E3-24-IN

Compressed air plays a vital role in many industries, which is why it's crucial to ensure the air is free from impurities. Fortunately, the Compressed Air Filter Element E3-24-IN can now help guarantee the cleanest air possible for various applications.



Compressed Air Filter Element E3-24-IN boasts impressive parameters that make it stand out in the market. It can filter particles as small as 0.01 microns with a filtration efficiency of up to 99.99%, ensuring that the air used in industrial processes is contaminant-free. The unit also has a maximum operating pressure of 10 bar.



What's great about the filter element E3-24-IN is that it features a compact and modular design that makes it easy to install and replace. The filter element uses advanced filtration media made from nanofibers, which enables it to hold a massive amount of contaminants and prolong service life. Additionally, the E3-24-IN filter element has a high dirt holding capacity, which reduces the frequency of replacements and maintenance costs.



The E3-24-IN is ideal for a wide range of applications, including automotive, food and beverage, electronics, and pharmaceuticals. It's also a cost-effective solution for removing impurities from compressed air, which can prolong the lifespan of machines and tools.



One customer cooperation case that highlights the effectiveness of this filter element is a food and beverage company that used the compressed air filter element E3-24-IN to improve the quality of their products. After implementing the filter element, they noticed a significant reduction in product defects and improved customer satisfaction.



Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.



Parameter

· Part Number: E3-24-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 3

· Filter diameter (mm): 60.5

· Filter height (mm): 167

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.001ppm w/w



Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy



FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.



Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.



Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.



Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)



Q: May you do OEM Service?

A: Yes.
