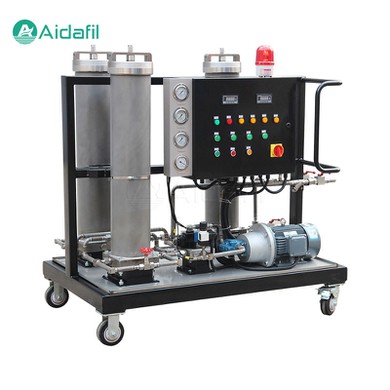

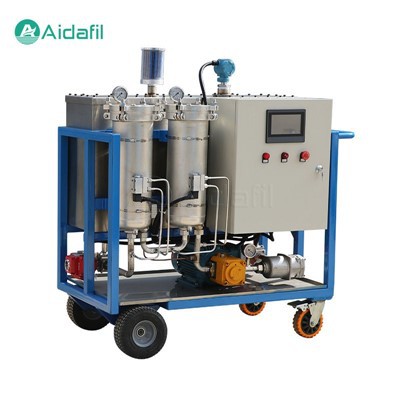

Stainless Steel Vacuum Oil Purifier For Filtering Phosphate Ester Fire-Resistant Oil

The stainless steel vacuum oil purifier for filtering phosphate ester fire-resistant oil is a cutting-edge piece of equipment designed to filter and purify phosphate ester fire resistant oil. This advanced machine is made from high-quality stainless steel, ensuring durability, reliability, and resistance to corrosion. It is specifically engineered to remove impurities, water, and gases from the oil, thereby extending the service life of the oil and reducing maintenance costs for equipment using this specialized fluid.



Phosphate ester fire-resistant oil is a type of hydraulic fluid that is commonly used in various industrial applications due to its excellent fire-resistant properties. This oil is essential for ensuring the safe and efficient operation of machinery and equipment in industries such as aerospace, petrochemical, power generation, and manufacturing. It is engineered to provide an enhanced level of safety in high-risk environments where conventional oils may pose a significant fire hazard. It resists ignition and suppresses flame propagation but is also more susceptible to contamination.



The stainless steel vacuum oil purifier for filtering phosphate ester fire-resistant oil operates by employing a three-stage filtration process that effectively removes impurities, water, and gases from the phosphate ester fire resistant oil. The three stages of filtration include:

1. Coarse filtration. In the first stage, the oil is passed through a coarse filter that removes large particles and debris, such as metal shavings or dirt. This initial filtration step helps to prevent the finer filters in the subsequent stages from becoming quickly clogged with large contaminants.

2. Fine filtration. The oil then undergoes fine filtration, where smaller particles and impurities are removed. This stage utilizes high-quality filter elements made from stainless steel or other synthetic materials, depending on the specific requirements of the application. The fine filtration process ensures that the oil is thoroughly cleaned and free of harmful particles that could damage equipment or reduce its overall efficiency.

3. Demulsification and dehydration. In the final stage, the oil is subjected to a demulsification process that separates any water content from the oil. This is crucial for maintaining the fire-resistant properties of the phosphate ester oil. Additionally, the purifier employs a vacuum dehydration system that removes any remaining water and gases from the oil, further enhancing its quality and performance.



Key Parameters

Flow rate	20 L/min, 30 L/min, 40 L/min, 50 L/min, 100 L/min
Working vacuum	-0.070 ~ -0.095 MPa
Working pressure	≤ 0.4 MPa
Power supply	50Hz 380V (or customized)
Working noise	≤ 75 dB(A)
Total power	1.7 kw, 2.3 kw, 3.0 kw, 3.5 kw, 5.3 kw
Inlet / Outlet	15.5 mm, 20 mm, 33 mm, 33 mm, 50 mm



Design Features

1. Corrosion-resistant stainless steel construction. The vacuum oil purifier is built using high-grade stainless steel, making it highly resistant to corrosion and suitable for use in harsh industrial environments.

2. User-friendly design. The equipment features an intuitive control panel that allows operators to easily monitor and adjust the purification process. Additionally, its compact and modular design makes it easy to transport and install in various settings.

3. High-capacity filtration. The vacuum oil purifier is designed to handle large volumes of oil, making it ideal for use in industrial-scale operations. Its high flow rate and efficient filtration process ensure that the equipment can keep up with the demands of busy production facilities.

4. Low maintenance. The vacuum oil purifier requires minimal maintenance, thanks to its durable construction and reliable components. Regular filter replacements are simple and straightforward, minimizing downtime and reducing the need for costly repairs.



Operational Considerations

Operating the stainless steel vacuum oil purifier requires attention to several parameters, including temperature, vacuum level, and flow rate. The oil's temperature must be controlled to optimize the vacuum process and prevent degradation of the oil or filter elements. Similarly, the vacuum level needs to be precise enough to ensure efficient degassing without causing oil to be pulled into the vacuum system. Finally, the flow rate must be balanced to guarantee thorough purification without sacrificing productivity.



Maintenance and Service

To maintain optimal performance, regular service and maintenance of the oil purifier are necessary. This includes routine cleaning of the filter elements, inspection of the vacuum system, and monitoring of the pump's condition. Scheduled checks should also be carried out to ensure that all safety features are operational and that the unit is functioning within specified parameters.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
