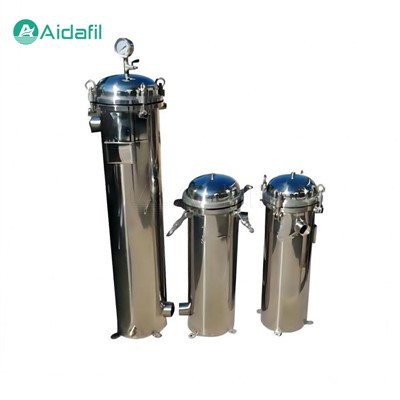

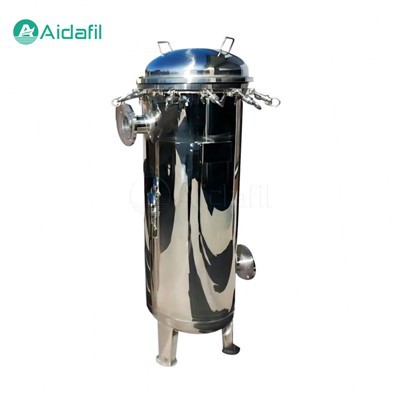

Stainless Steel Single Bag Filter Housing

The bag filter is a highly efficient and reliable industrial water filtration device designed to remove impurities from liquids. With its exceptional filtration capabilities, this device plays a crucial role in ensuring the quality and purity of water used in various industrial applications.



The stainless steel single bag filter housing consists of a stainless steel housing, a single filter bag, and a set of connections for inlet and outlet pipes. The stainless steel housing is typically made from 304 or 316 grade stainless steel, which provides excellent corrosion resistance and durability. The filter bag is usually made from a durable, woven fabric such as polypropylene or polyester, with a precise mesh size to capture particles of a specific size range.



The stainless steel single bag filter housing operates on the principle of gravity filtration, where the water stream flows into the filter housing through the inlet connection and passes through the filter bag. The filter bag captures particles and contaminants, allowing clean water to flow out of the filter housing through the outlet connection.



The filter bag is designed to capture particles of a specific size range. The mesh size of the filter bag determines the size of particles that can pass through, with smaller mesh sizes capturing smaller particles.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Features

1. Robust Construction. The filter housing is made of high-quality stainless steel, ensuring durability and resistance to corrosion.

2. Easy Installation and Maintenance. The compact design and user-friendly features allow for easy installation and hassle-free maintenance.

3. Wide Range of Filtration Ratings. The stainless steel single bag filter offers a wide range of filtration ratings to meet different industrial requirements.

4. High Flow Rate. The design of the filter allows for a high flow rate, enabling efficient filtration and minimizing downtime.

5. Leak-proof Operation. The filter housing is designed to provide a leak-proof operation, ensuring the integrity of the filtration process.



Advantages

1. Efficient Filtration. The single bag filter design ensures efficient removal of solid particles, sediments, and other impurities, resulting in cleaner water.

2. Cost-effective Solution. The stainless steel single bag filter offers a cost-effective solution for industrial water filtration, reducing the need for frequent maintenance and extending the lifespan of downstream equipment.

3. Versatility. This equipment can handle a wide range of liquids, making it suitable for diverse applications such as chemical processing, food and beverage, pharmaceuticals, and wastewater treatment.

4. Easy Maintenance. The bag can be easily replaced or cleaned, minimizing maintenance time and costs.

5. Environmental Friendly. By removing impurities, the stainless steel single bag filter contributes to environmental sustainability by preventing pollution and preserving natural resources.



Applications

1. Chemical Processing. The filter effectively removes contaminants from chemicals, ensuring high-quality end products and protecting downstream equipment.

2. Food and Beverage Industry. It plays a vital role in maintaining the purity of water used in food and beverage production, meeting stringent hygiene standards.

3. Pharmaceuticals. The stainless steel single bag filter helps in achieving the required level of purity in pharmaceutical manufacturing processes, essential for product safety and efficacy.

4. Wastewater Treatment. It aids in the removal of suspended solids and other impurities from wastewater, facilitating the treatment process and protecting the environment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
