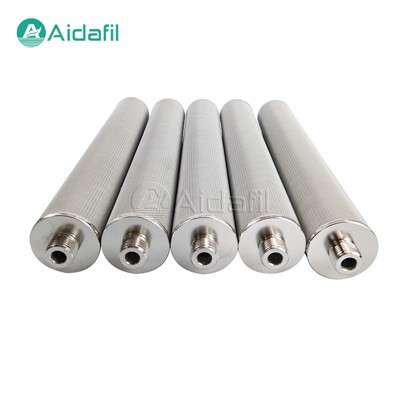

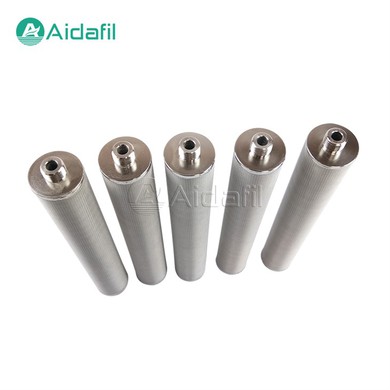

Metal Fibers Filter Element

Metal fibers have excellent performance in filtration applications in comparison to other materials. Metal fibers filter elements are resistant to high temperatures and corrosion, and show high mechanical strength and high porosity for low pressure drop. They can be recycled without loss of performance and thus the using cost can be comparatively low.

Product Advantage

1.High-precision welding, original standardized technology

2.High mechanical strength, good rigidity and extremely stable precision. The high pressure resistance is very outstanding, especially suitable for occasions with high compressive strength and uniform filter particle size requirements

3.Low filtration impedance, good permeability

4.High pressure resistance, shock resistance, good wear resistance

5.Good cold resistance and heat resistance

6.Resistant to strong alkaline corrosion, strong acid corrosion and other working environments

7.Good comprehensive performance. It has special advantages such as high precision, high efficiency and long service life.

Product Parameter

· Accuracy: 1-300μm

· Standard size: 1000mm x 500mm, 1000mm x 1000mm

· Standard material: stainless steel 316L, 304, 321

· Diameter: 30, 50, 60, 65, 80mm

· Length: L100-1500mm

· Product customization service is available

Product Application

· Viscose filtration.

· Special oil filtration (aviation kerosene, transformer oil, etc.).

· Steam and high temperature gas filtration.

· High viscosity chemical solution filtration.

· Separate the mist (gas-liquid separation).

· High molecular polymer filtration (nylon, engineering plastics, carbon fiber, PET, PTMEG, etc.).

· High temperature gas filtration in ethylene project.

· High temperature dust filtration.

· Gas filtration in coal chemical industry.
